MM-PIT 2/4-Channel Monitor/Meter

Overview

The MM-PIT series delivers an innovative "3-in-1" solution — combining the functionality of a benchtop meter, a continuous data monitor, and a computer-based data management system in a single USB device. Channels can handle pH, ion concentration (ISE), ORP (redox) and temperature measurements simultaneously.

The included software provides real-time display in both Meter and Table mode, supports individual or simultaneous calibration, and stores all data as text files exportable directly to Microsoft Excel.

Model MM-PIT 2U

2-Channel Monitor/Meter

Supports 2 simultaneous pH, Ion or Temperature inputs. Ideal for paired electrode monitoring and titration setups.

2 × pH / Ion / Temp

exc. VAT

Model MM-PIT 4U

4-Channel Monitor/Meter

Supports 4 simultaneous inputs. Perfect for multi-parameter water quality monitoring and research applications.

4 × pH / Ion / Temp

exc. VAT

Order at elyxir.co.uk/products · See the full analyser range including 8-channel ELIT 9808 at elyxir.co.uk/products

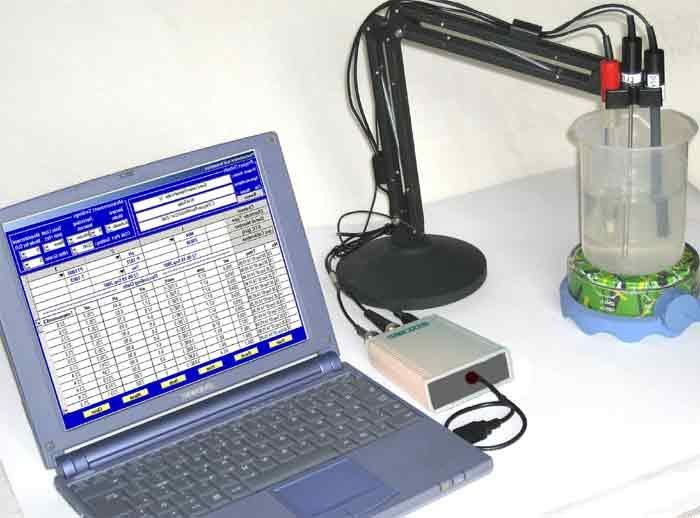

MM-PIT lab setup with laptop and electrodes

MM-PIT in a typical lab setup with laptop and multiple electrodes

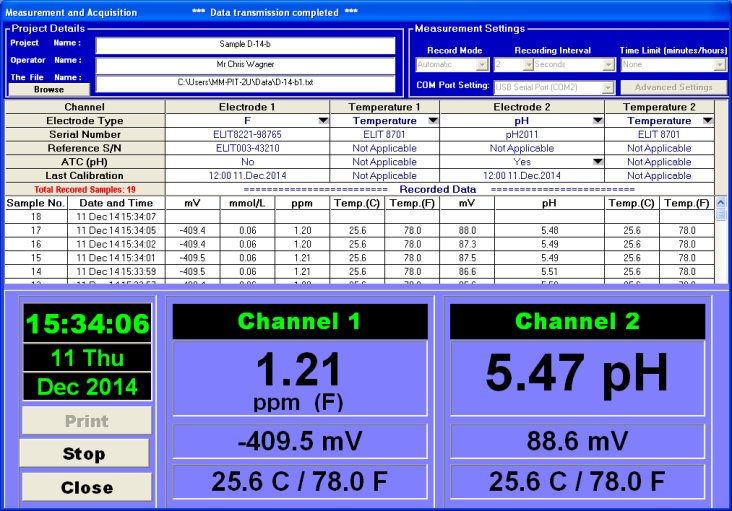

MM-PIT software interface or front panel

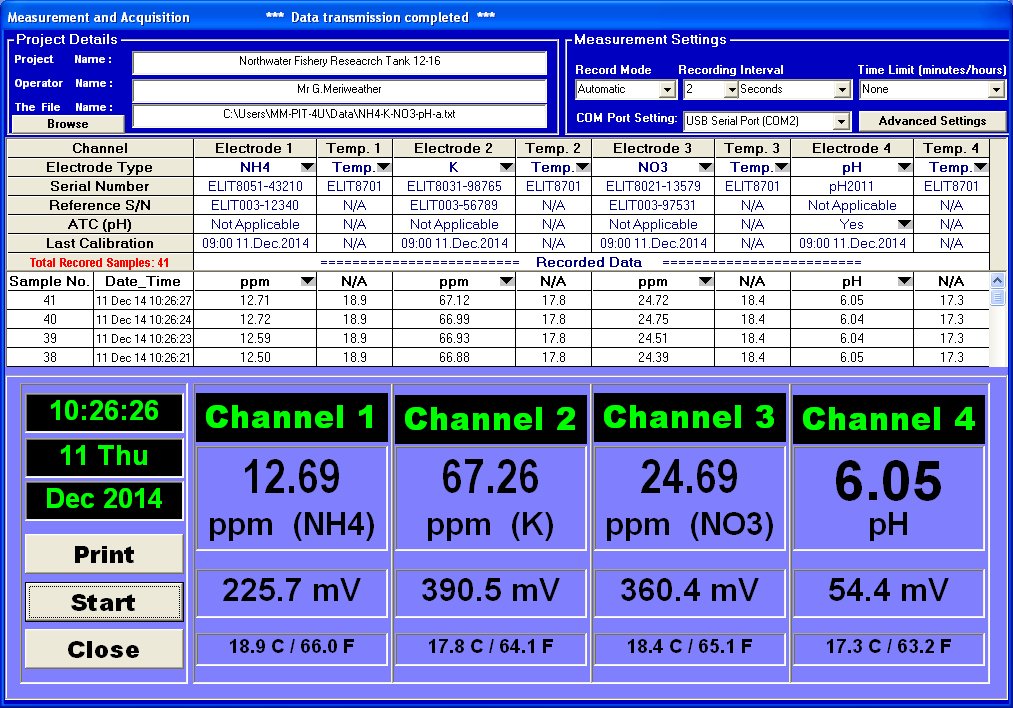

Measurement software — Meter and Table display modes

Features

•Continuous real-time monitoring and individual sample measurement

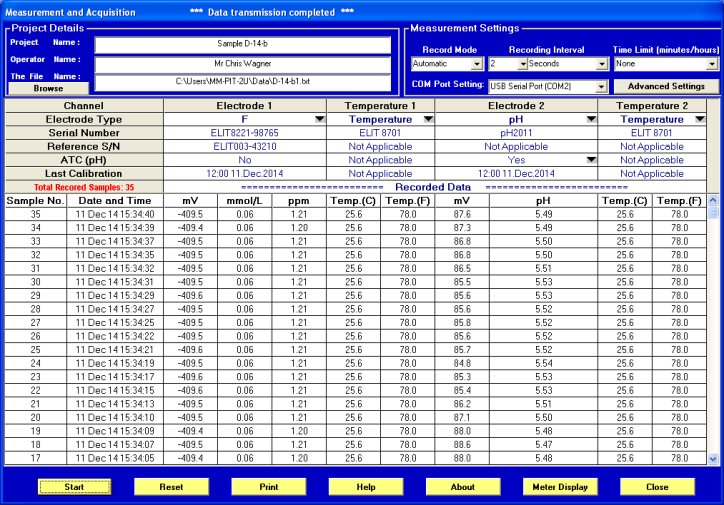

•Instant data display in Meter mode and Table mode

•Calibration, measurement, display and storage software included

•Compatible with Windows XP, Vista, 7, 8, 8.1 and Windows 10

•Same-type electrodes calibrated simultaneously; different types calibrated individually

•Data stored as text files — direct export to Microsoft Excel

•Wide selectable data acquisition frequency

•Open communication protocol — compatible with LabView, DaisyLab, C++, Visual Basic

•Works with all standard pH, Ion and ORP electrodes

•Compatible with all standard temperature sensors

Applications

Laboratory research and analytical chemistry
Multi-parameter water quality monitoring
Environmental field measurements
Process monitoring and control
Educational laboratories and demonstrations
Continuous logging and trend analysis

Electrode Compatibility

Input Type	Compatible Sensors
pH	All standard combination pH electrodes (BNC)
Ion (ISE)	All ELIT ISE series and compatible third-party ISEs
ORP / Redox	Standard ORP / platinum redox electrodes
Temperature	Standard NTC / PT100 temperature probes

Gallery

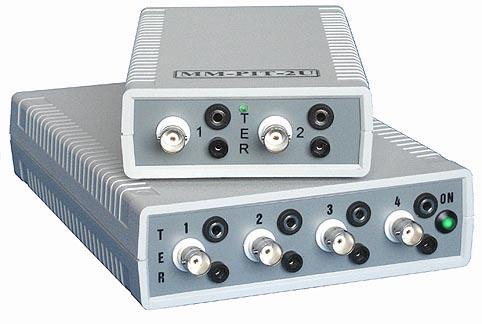

Various MM-PIT configurations in use

System Requirements

Requirement	Detail
Interface	USB (computer-based)
OS	Windows XP, Vista, 7, 8, 8.1, 10
Software	Included (calibration, measurement, storage)
Data Export	Text file / Microsoft Excel
Protocol	Open — LabView, DaisyLab, C++, VB
